2.0 - Understanding AWS Core Services¶

Interacting with AWS¶

Methods of Interacting with AWS¶

AWS Console - Browser-based web app for interacting with most or all of the services.
Typically used for testing out AWS services.
AWS CLI - Command line access for administering AWS resources
AWS SDK - Programmatic access - allows you to interact with AWS services via code.
Supported by a multitude of programming languages e.g. NodeJS, JavaScript, Python, GO.
Repeating tasks typically automated via the CLI and or SDK.
SDK allows automation of AWS tasks within custom applications.

Using the AWS Console¶

User sign in available
Root user == Admin - can do anything
User information shown e.g. account, organization, quotas, security.
Region and support selectors available.
Services dropdown shows most of available services along with search bar.
Certain regions will be shown to not be region-specific.

Using the AWS CLI¶

AWS Console → Security Credentials → Access Keys → Create New Access Keys
Advised to create access keys for IAM users only, not root.
Copy access key and secret access key (one-time viewing only!)
Installation:
Install per platform requirements
Verify with aws --version
Add access keys: aws configure --profile <profile name>
- Add access key, secret access key, default region and output format
Verify with sample command e.g. aws s3 ls --profile <profile name>

Interacting with AWS Scenarios¶

Interacting with AWS Scenario 1¶

Several production workloads
New web application that manages digital assets
Automatically need to create a user account in AWS Cognito on signup
What interaction method? SDK - tailored to the application SDK.

Interacting with AWS Scenario 2¶

Company considering AWS
Want to use AWS Relational Database Service and test a single database
What interaction method? Console

Interacting with AWS Scenario 3¶

Startup company with web and mobile app
Set of repeatable tasks for generating reports.
AWS CLI recommended.

Compute Services¶

Any service that allows leveraging of cloud-based virtual machines.

EC2 Overview¶

A web service that provides resizable compute capacity in the cloud.
Use cases include:
Web application hosting
Batch processing of data
Web services endpoint
Desktop in the cloud

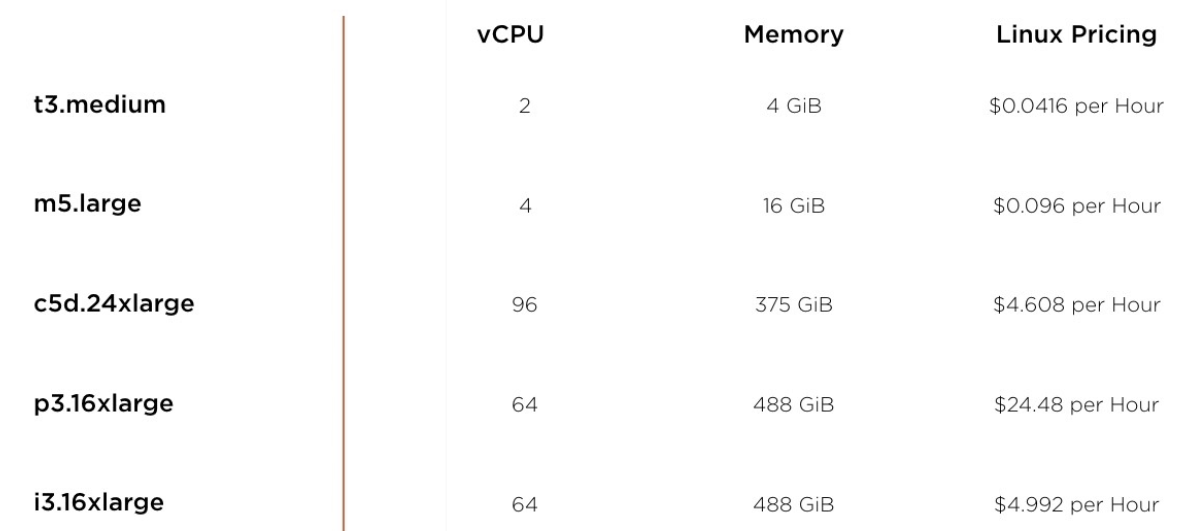

EC2 Instance Types¶

Determines the processor, memory and storage type
Cannot be changed without downtime
Provided in the following categories:
General-purpose
Compute, memory and storage optimized
Accelerated computing (special / high performance)
Pricing based on instance type and category.
Certain instance types have unique capabilities.

Root Device Type¶

2 Primary Types:
Instance store - Ephemeral storage physicall attached to the host the virtual server is running on.
Elastic Block Store (EBS) - Persistent storage that exists seperately from the host the virtual server is running on.
- Generally more commonly used than instance store.

Amazon Machine Image (AMI)¶

A template for an EC2 instance, including configuration, OS and data
AWS by default provides many AMIs
AMIs can be shared across AWS accounts.
Custom AMIs can be created based on configuration.
Commercial AMIs are available in the AWS marketplace.

EC2 Purchase Types¶

Options available:
On-demand

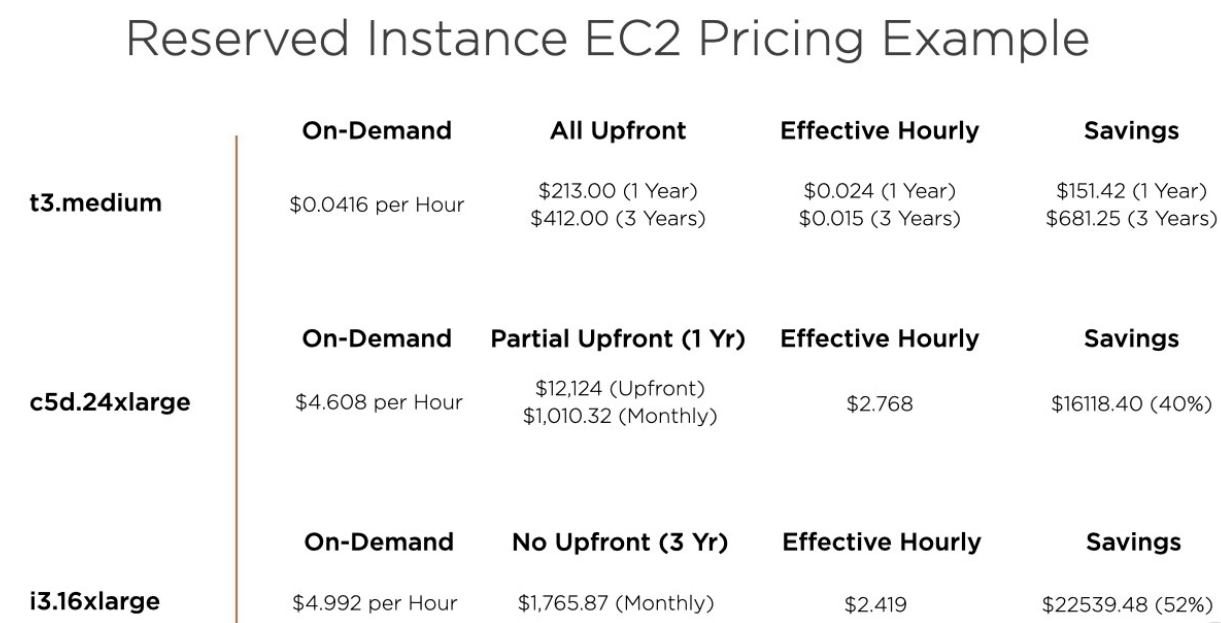

Reserved
- Provides discounts over on-demand when can commit to a specific period of time.
- Provides a capacity reservation for the specific instance type.
- Instance types:
- Standard - highest discount and works for steady workloads
  - Cost Models:
  - All upfront (highest savings but biggest upfront investment)
  - Partial upfront with reduced monthly cost.
  - No upfront but still providing a reduced monthly cost compared to standard.
- Convertible - Allows conversion of some attributes, works for steady workloads
- Scheduled - Works for a particular time window you reserve, typically used for predictable workloads.
Savings Plan
- Similar to reserved instances
- Supports compute with EC2, Fargate and Lambda
- Unlike reserved, it doesn't reserve capacity
- Provides up to 72% savings
- 1-3 Year terms available.
Spot
- Allows leveraging excess EC2 capacity
- Provides up to 90% discount over on demand pricing
- Market price for all instance types per availability zone - the spot price
- When requesting instances, if bid is higher than spot price - instance will launch
- If spot price grows to exceed bid, the instance terminates within 2 minutes.
Dedicated
- Dedicated physical server in the datacentre.
- May be required for server software licensing or compliance requirements.
If instance is consistent and always needed - standard or convertible reserved.
If batch processing and the process can start and stop without any adverse impact - use spot instances.
If an inconsistent need for instances that cannot be stopped without affecting the job - on-demand.
For specific per-server licensing or compliance requirements - use dedicated hosts.
If using Lambda or Fargate alongside EC2 - choose a savings plan.

Launching an EC2 Instance¶

AWS Console → EC2 → Launch instance
Select AMI → Custom / Marketplace / Community / Free
Select Instance Type
Configure instance details e,g,:
Network
Subnet
Placement group
IAM assigning
User data - commands to run when starting
Configure storage
Configure network security group
For general purpose testing, allow only "my IP" to access e.g. for SSH
Summary & Launch
Note: a key pair should be selected or created as appropriate.
Once launch, find public dns and access via browser to validate.
To terminate - select instance, then under actions → instance state → terminate

Elastic Beanstalk Overview¶

Automates deployment and scaling of EC2 Workloads (PaaS rather than IaaS)
Supports only a specific set of technologies
Leverages existing AWS services
Only pay for other services leveraged.
Handles provisioning, load balancing, scaling and monitoring.

Supported Application Platforms¶

Includes:
Docker
JAVA
NodeJS
Python
GO

Features¶

Monitoring
Deployment
Scaling
EC2 Customizations

Use Cases¶

Deploy an application with minimal knowledge of other services
Reduce overall maintenance needed for application
Few customizations needed.

Launching an App on Elastic Beanstalk¶

Tutorials provided depending on the applications to be deployed, along with sample applications for deployment.
AWS Console → Elastic Beanstalk → Get Started
Provide details:
Application Name
Application Platform
Application code → Sample application or upload code
Verify successful deployment by using the URL provided.
Functions provided incluide:
Health
Logs
Monitoring
Alarms
Events
To terminate, Actions → Terminate

AWS Lambda Overview¶

Allows running of code without provisioning or managing servers.
Only pay for the compute time consumed.
Allows running of code for any type of app or backend service with minimal administration.
Available memory configurable between 128-3008Mb
Integrates with many AWS services like S3 and Dynamo DB
Enable event-driven workflows
Primary service for serverless architectures
Advantages include:
Reduced maintenance requirements
Enables tolerance without additional work
Scales based ond emand
Pricing based on usage only.

Compute Services Scenarios¶

Compute Services Scenario 1¶

Moving multiple workloads into AWS
One workload to be leveraged for at least 5 years
Organization is looking for most cost-effective solution
Answer:
All upfront reserved - 3 years

Compute Services Scenario 2¶

PHP app to be deployed to virtual server
Minimal experience managing EC2 Instances
Need to scale on demand
Answer:
AWS Elastic Beanstalk

Compute Services Scenario 3¶

Data processing workloads
Workloads happen daily and can start or stop without issue
Workload to be leveraged for at least 1 year
Answer:
Spot Instances as workload can be started/stopped without issue.

Content and Network Delivery Services¶

Amazon VPC and Direct Connect¶

VPC¶

VPC = Virtual Private Cloud
Isolated section of AWS Cloud where resources can be launched into a user-defined virtual network
Enables virtual networks in AWS
Supports IPv4 and IPv6
Allows configuration of:
- IP address range
- subnet
- Route tables
- network gateways
Supports private and public subnets
Can utilize NAT for private subnets
Enables connection to data center
Can connect to other VPCs
Supports private connections to many AWS services

Direct Connect¶

A cloud service solution that makes it easy to establish a dedicated network connection from your data center to AWS.

Amazon Route 53¶

Domain Name Service (DNS)
Global AWS service (not regional)
Highly available → Minimal downtime
Enables global resource routing
DNS:
Translates readily memorized domain names to the numerical IP addresses needed for locating and identifying computer services and devices with the underlying network protocols.
DNS Changes are not instantaneous - may take around 2 hours.
Example:
Consider an application hosted in us-east-1 and eu-west-1
If the us-east-1 goes down, Route 53 could be configured to automatically route the requests made to that server to the other region.

Elastic Load Balancing¶

Elasticity - The ability for infrastructure supporting an application to scale up and down based on demand.
Elastic load balancing:
Distributes traffic across multiple targets
Integrates with EC2, ECS and Lambda
Supports one or more availability zones in a region.
3 Types of load balancer available:
- Application (ALB)
- Network (NLB)
- Classic (ELB)
Scaling on EC2:
Vertical scaling - scaling up with a larger instance type and additional resources.
- Would require downtime for changes to be made
Horizontal scaling - add additional instances to handle application demand.

Amazon CloudFront and API Gateway¶

CloudFront:
Content Delivery Network
Enables users to get content from closest server to them
Supports static and dynamic content
Utilizes AWS Edge locations
Includes advanced security features such as:
- AWS Shield for DDoS
Edge locations are scattered worldwide.
API Gateway:
A fully managed API management service
Directly integrates with many AWS sservices
Allows monitoring and metrics on API calls
Supports VPC and on-prem private applications

AWS Global Accelerator¶

Networking service that sends user traffic through Amazon's global network infrastructure.
Utilizes IP addresses that route to edge locations
When request reaches edge locations, traffic is routed through AWS network
Routes requests to many resources including
NLB
ALB
EC2 Instances
Elastic IP Addresses
Can lead to varying performance improvements:
Distance between user and initial endpoint is minimized via edge location usage
Traffic is optimized by using AWS networks instead of public internet
Results in improvement of first-byte latency, etc
Provides superior fault tolerance by not relying on DNS resolution.
Use Cases:
Non-HTTP Protocol e.g. UDP, MQTT, VOIP
Static IP required.
Instant Failover required.

AWS Global Accelerator Scenarios¶

AWS Global Accelerator Scenario 1¶

2 Corporate Data centres
Want their data centres to work alongside AWS for specific workloads
Wanting persistent connection to AWS
What Service?
Answer: AWS Direct Connect

AWS Global Accelerator Scenario 2¶

Company serves content through their site to users around the globe
Looking to optimize performance to users around the world.
Want to leverage a CDN,
What service?
Answer: Amazon CloudFront

AWS Global Accelerator Scenario 3¶

Internal application on EC2 Server
Downtime currently as demand > capacity
Bigger server or more servers?
What scaling approach and services?
Answer: Horizontal Scaling and Elastic Load Balancing

File Storage Services¶

Amazon S3 Overview¶

Files stored as objects in "buckets"
Provides different storage classes per use case
Data can be stored across multiple availability zones
Enables URL access for files
Offers configurable rules for data lifecycle
Can serve as a static website host

Non-Archival Storage Class¶

S3 Standard - default, for frequently accessed data
S3 Intelligent Tiering - Moves data to the correct storage class based on usage
S3 Standard-IA - For infrequently accessed data with standard resilience
S3 One-Zone-IA - For infrequently accessed data only stored in 1 availability zone.

S3 Intelligent Tiering¶

Automatically moves files based on access
Moves between frequent and infrequent access (like hot/cold blobs in Azure)

S3 Lifecycle Policies¶

Objects in a bucket can transition or expire based on criteria
Transitions enable objects to move to another storage class based on time
Expiration can delete objects based on age
Policies can also factor in versions of a specific object in the bucket.

S3 Transfer Acceleration¶

Enabled per bucket
Allows for optimized uploading of data using Edge locations

Hosting a Website on Amazon S3¶

AWS Console → S3
Create Bucket
Supply details:
- Name (must be unique across accounts)
- Region
- Versioning
- Tags
- Permissions
- Enable public access (if acting as a public website)
Select bucket and upload desired files e.g. "index.html and logo"
Set the. permissions for users as required.
Configure the file storage classes as required e.g. storage, intelligent-tiering.
Encryption - Amazon S3 Master Key ensures encryption at-rest.
When viewing the files, each should come with an object URL
Configure the permissions as required e.g. "everyone read access for the object"
Under properties → Static website hosting → "use this bucket to host a website"
Select index file and error document where required.
Redirect rules are optional.
Once enabled, URL endpoint provided - permissions must be set to allow access

Glacier and Glacier Deep Architecture¶

S3 Glacier
Designed for archiving of data in S3 as a separate storage class
Offers configurable retrieval times - quick / less quick
Files can be sent directly or through lifecycle rules in S3
Classes:
- S3 Glacier
- Designed for archival data
- 90-Day minimum storage duration
- Minutes or hours retrieval time
- Retrieval fee per GB retrieved
- Over 5x less expensive than S3 Standard storage class
- S3 Glacier Deep Archive
- Archival data
- 180-day minimum storage duration
- Data retrieval in hours
- Pay a retrieval fee per GB
- Over 23x less expensive than S3 Standard storage class.
Typically, the management console is used to quickly set up S3 glacier, the data can then be uploaded and retrieved programatically

Elastic Block Store (EBS)¶

EBS = Persistent block storage for use in EC2 storage
Can scale to support petabytes of data per workload
Enables redundancy within an availability zone
Allows users to take snapshots of its data
Offers encryption of its volumes
Provides multiple volume types including:
- General SSD - Cost-effective for general workloads
- Provisioned IOPS SSD - High performance for low latency applications
- Cold HDD - Less frequently accessed data
- Throughput optimized HDD - Frequently accessed data

Elastic File System¶

Elastic File System
Fully managed NFS File System
Designed for Linux Workloads
Scales up to petabyte scale
Stores data across multiple AZs
Storage classes:
Standard
Infrequent access
Provides configurable lifecycle data rules
For windows workloads consider Amazon FSx
Fully managed windows file system
Includes native windows features like Windows NTFS, Active Directory Integration, and SMB Support

Data Transfer with AWS Snowball¶

Service to phyically migrate petabyte scale data to AWS
AWS snowmobille - "" for exobyte scale data
Snowball:
Designed for large scale data transfer
Supports petabyte-scale transfer
Physical device delivered by AWS
Snowball can be connected to network to upload data
Device then returned by local carrier
AWS recives device and loads data into S3
Snowmobile
Designed for large scale data transfer
Supports exabyte-scale transfer
Shipping container delivered to location
AWS sets up connection to network
Data loaded onto snowmobile
AWS loads data into S3 when container received by AWS.

File Storage Scenarios¶

File Storage Scenario 1¶

Site offering daily developer tutorials
S3 stores assets needed per tutorials
Assets very popular within the week of launch
Not popular a week after
What's the most cost-effective solution whilst maintaining durability?
S3 Lifecycle rules with S3 Standard IA storage class

File Storage Scenario 2¶

Social media company
2Pb of user-generated content to be migrated
Is there a faster method than uploading over the internet?
AWS Snowball

File Storage Scenario 3¶

Messaging app
Looking for shared file system between 8 different Linux EC2 Instances
File system to support 1Pb of data
What approach?
Utilise elastic file system (EFS) - needs to definitely be for linux workloads and maximum of Petabyte data.

Database Services and Utilities¶

As with other services on AWS, you can utilise IaaS, PaaS or SaaS for database services and utilities. IaaS can be leveraged by EC2 Instances, however, PaaS and SaaS options are also available.

Amazon Relational Database System (RDS)¶

PaaS for databases
Fully managed service for relational database
Handles provisioning, patching, backup and recovery of the database
Supports deployments across multiple AZs
Some platforms support read replicas
Launches into a VPC
Provides both general-purpose SSD and Provisioned IOPS SSD options for storage.
Database options include:
MySQL
PostgreSQL
MariaDB
Oracle Database
SQL Server
Amazon Aurora
- A MySQL and PostgreSQL-compatible relational database built for the cloud.
- Aims to optimize performance, simplicity and costs.

Amazon Database Migration Service (DMS)¶

Allows moving of data into AWS from existing databases.
Supports both one-time and continuous migration.
Supports many popular database types.
Only pay for compute leveraged by process.

Amazon DynamoDB Overview¶

Fully managed NoSQL database service - SaaS
Provides key-value and document database functionality
Offers extremely low latency at any scale
Supports automated scaling based on configuration
Offers in-memory cache with the DynamoDB Accelerator - DAXX
Use cases:
Scale without excessive maintenance
Serverless applications
Implementations where low latency is key
Data models without blob storage

Amazon Elasticache and Redshift¶

Elasticache¶

Fully-managed in-memory data stores
Supports Memcached and Redis
Low latency in response times
Enables scaling and replicas to meet application demand
Common use cases:
Database layer caching
Session storage

Redshift¶

Scalable data warehouse service
Supports petabyte scale warehousing of data
Leverages high performance disks and columnar storage
Offers full encryption of contents
Isolation via a VPC
Querying of exabytes-worth of data can be done by AWS Redshift Spectrum

Database Services Scenarios¶

Database Services Scenario 1¶

Financial services
Data warehouse getting transitioned up to AWS for analysis
Data warehouse needs to support up to 2PB
What approach?
Utilise AWS Redshift

Database Services Scenario 2¶

MySQL DB to be launched for new web application
Need direct access to the virtual server running it
Answer: Use an EC2 instance

Database Services Scenario 3¶

Store realtime analytics
Low latency and high scaling
Minimize maintenance needs:
DynamoDB

App Integration Services¶

AWS Messaging Services¶

Simple Notification Service (SNS)¶

Fully managed pub/sub messaging service
Enables creation of decoupled applications
Organised according to topics
Integrates with multiple AWS services
Provides end-user notifications via any of SMS, email, etc.
Example use case: User Signup
User signup is set up on a SNS Topic
Lambda function, SQS Queue and email notifications could all be triggered based on the topic event.

Amazon Simple Queue Service (SQS)¶

Fully managed message queue service
enables building decoupled and fault-tolerant applications
Up to 256kb data payload
Messages storeable up to 14 days
2 Queue Types:
Standard
First-in-first out (FIFO)

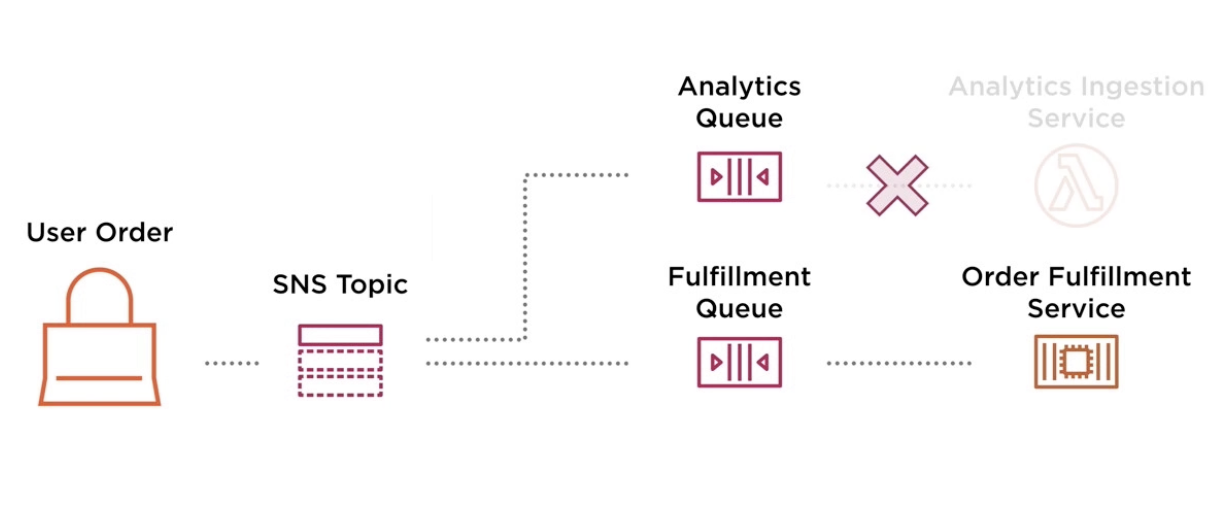

Sample Architecture¶

SNS and SQS could be leveraged in many ways together, in a similar manner to below:

If the Analytics service fails - no problem! the data will remain in the queue and then get processed once the services are back up and running.
SQS Leads to fault tolerance.

AWS Step Functions¶

Enables orchestration of workflows through a fully managed service
Supports serverless architectures
Supports complex workflows including error handling
Charged per state transition along with other AWS services leveraged

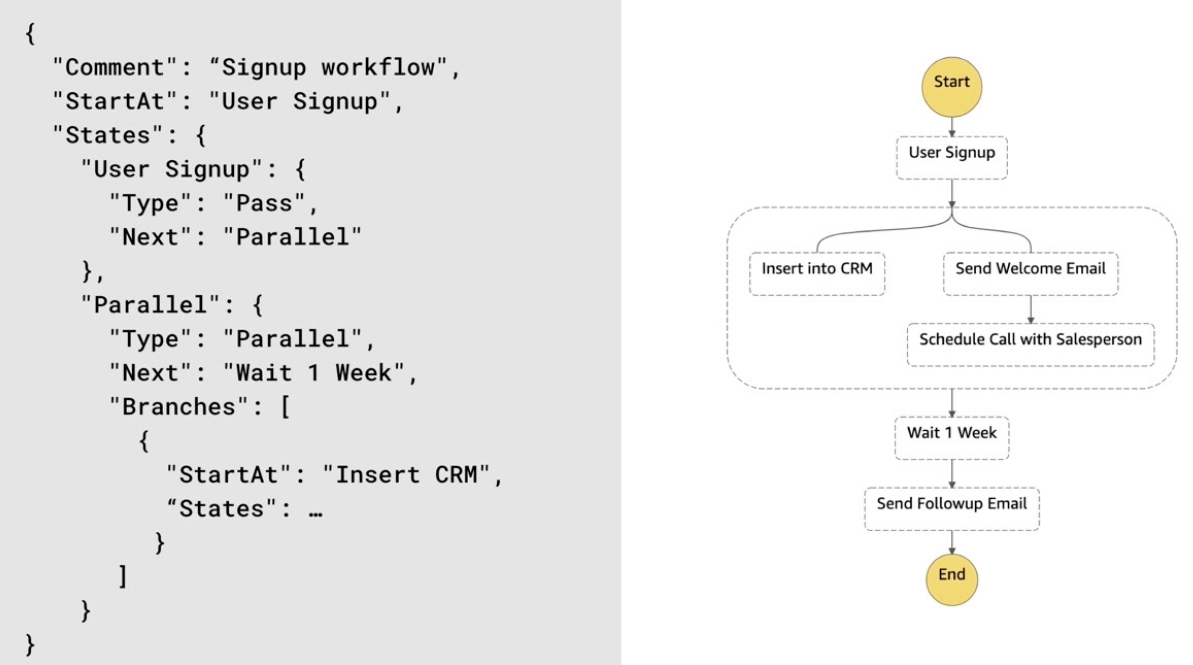

Workflow defined using Amazon States Language (example below)

Step functions can integrate with many AWS services including compute, database, and messaging services.

App Integration Services Scenarios¶

App Integration Services Scenario 1¶

Non-profit org
Database server going down prevented signup
Expected downtime in future
AWS Service needed to prevent lost signups
Recommended service: Simple Queue Services (SQS)

App Integration Services Scenario 2¶

Onboarding steps for new customers
Steps include integrations with CRM, emails, analytics
Recommended service: Step Functions

App Integration Services Scenario 3¶

Ecommerce building a custom platform
New functionality getting added
Aspects of the platform should listen for events like orders and refunds
Don't know all elements that would need to respond to the events.
Recommended Service: Simple Messaging Service (SNS)

Management and Governance Services¶

AWS CloudTrail¶

Allows logging and continuous monitoring of account activity for actions across AWS Infrastructure.
Provides event history of AWS account activity.
Audit trails logged in S3 buckets or CloudWatch logs
Logs events per region
Meets many compliance requirements for infrastructure auditing.
Should be enabled by default for every AWS account as part of best practices.
Can be consolidated via AWS Organizations.
Use cases:
Compliance requirements.
Forensic analysis for incidents
Operational analysis.
Troubleshooting

AWS CloudWatch and AWS Config¶

Cloudwatch¶

Provides metrics, logs and alarms for infrastructure.
Monitoring and management service.
Collects logs, metrics and events from most AWS services.
Enables alarms based on metrics.
Provides visualization capabilities for metrics.
Allows for custom dashboards for metrics.

AWS Config¶

Continually evaluates infrastructure against a set of rules.
Provides configuration history for infrastructure
Works against rules that are customisable or can create custom validations
Includes conformance packs for compliance standards
Can work with AWS Organizations for both cross-region and cross-account setups
Provides remediation steps for any checks not passed.

AWS Systems Manager¶

Provides a unified user interface to view operational data from multiple AWS services.
Provides multiple tools to make it easier to manage AWS Infrastructure
Enables automation tasks for common maintenance actions.
Provides a secure way of accessing servers with only AWS credentials.
Stores commonly used parameters securely for operational use.

AWS CloudFormation¶

Managed service for provisioning infrastructure based on templates e.g. provision 3 EC2 instances for dev environment, 1 for prod.
Only pay for the resources provisioned.
Templates written in YAML or JSON → Leverages infrastructure as code.
Manages dependencies between resources.
Provides drift detection to find changes in your infrastructure (like Terraform state)
Example template:

Description: Creates an S3 Bucket
Resources:
  SampleS3Bucket:
    Type: AWS::S3::Bucket
    Properties:
      BucketName: <bucket name>

AWS OpsWorks¶

Configuration management service
Provides managed instances of Chef and Puppet
Configuration defined as code for servers.
Chef and Puppet manage the lifecycle of configuration changes with servers
Works in a hybrid cloud architecture for both cloud and on-prem infrastructure.
Comprised of 3 mains ervices:
AWS OpsWork for Chef Automate
AWS OpsWork for Puppet Enterprise
AWS OpsWork Stacks - Can define application in "layers" to then be managed by Chef/Puppet as appropriate.

AWS Organizations and Control Tower¶

AWS Organizations¶

Allows organisations the ability to manage multiple accounts from a master account
Provides organizations with the ability to leverage consolidated billing for all accounts.
Allows centralized logging and security standard enforcement.

AWS Control Tower¶

Centralises users across all AWS accounts
Provides a way to create new AWS accounts based on templates.
Integrates guardrails for accounts.
Includes a dashboard to gain operational insight from a single view.

Management and Governance Scenarios¶

Management and Governance Scenario 1¶

Financial services.
Discovered a security setting was disabled on a server
Wants events like this to be monitored
What service?
AWS Config

Management and Governance Scenario 2¶

SaaS company
New application including several components.
Wanting to minimise manual work required when creating infrastructure.
What service? CloudFormation

Management and Governance Scenario 3¶

Cloud Server needed to support manufacturing process was deleted
Want to follow up with the person
What service: CloudTrail
