4.07 - Ingress

Objectives

  • Describe the Contour Ingress Controller
  • Explain how to install Contour to a Tanzu Kubernetes cluster

Ingress Overview

  • A method used in Kubernetes for routing external traffic to pods
  • Operates on layer 7 traffic
  • Routes requests based on HTTP headers
  • Can be implemented via various tools including:
  • Contour
  • NGINX
  • Amazon ALB
  • NSX Advanced Load Balancer

Contour Overview

  • An open-source Kubernetes ingress controller
  • Used as the default ingress controller for Tanzu Kubernetes Grid
  • Supports Ingress and HTTPProxy resources
  • Comprised of a Contour controller deployment and Envoy proxy Daemonset
  • Envoy used to perform traffic routing - handles rerouting traffic based on rules in place
  • Supports dynamic configuration updates based on kubectl apply commands etc.

HTTPProxy Resources

  • Match requests based on the configured virtualhost FQDN field
  • Routes requests based on routes matching the ULR path to the defined service and port
  • R
  • Supports conditional routing based on URL prefixes and HTTP headers
  • Supports inclusion of one HTTPProxy resource within another - creating tree-like routing structures
  • Example resource:
apiVersion: projectcontour.io/v1
kind: HTTPProxy
metadata:
  name: basic
spec:
  virtualhost:
    fqdn: foo-basic.bar.com
  routes:
    - conditions:
      - prefix: /
      services:
        - name: s1
          port: 80

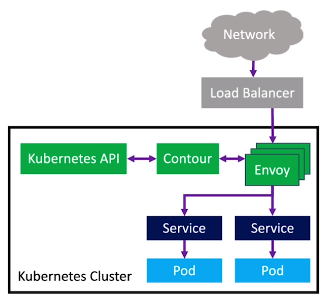

How Contour Works

  • Contour deployment dynamically configures an Envoy proxy DaemonSet by using the following steps:

  • Contour watches the Kubernetes API for Ingress or HTTPProxy resources

  • Contour generates a cache of ingress and HTTPProxy resources
  • Envoy periodically polls Contour for configuration changes
  • Envoy dynamically updates its routing configuration
  • Requests are received from a load balancer or directly from the external network and routed to the correct pods.

Untitled

Contour Configuration

  • Under extensions/ingress/contour/vsphere - the following two config files are required:

Untitled

  • The default Contour configuration is suitable for most deployments
  • Advanced options can be added, such as:
  • requestTimeout
  • connectionIdleTimeout
  • minimumProtocolVersion (TLS)
  • Additional options are available in the TKG documentation
