4.05 - Logging

Learner Objectives

  • Describe FluentBit
  • Detail the logs collected by FluentBit
  • Describe basic Fluentbit configuration

Fluentbit Overview

  • A lightweight logging framework
  • Functionality includes:
  • Processing of Kubernetes container logs
  • Enriches logs with Kubernetes metdata
  • Outputs logs to various services including:
    • vRealize Log Insight
    • Syslog
    • Elasticsearch
    • Splunk
    • HTTP Endpoint

Configuration and Deployment

  • FluentBit is deployed as a Daemonset by default (runs on all nodes!)
  • Configuration files and architecture follow:

Untitled

  • Depending on what logs are enabled, FluentBit collates all logs and outputs it to the desired service endpoint.

Metadata Considered

  • Fluentbit includes metadata such as:
  • Pod ID
  • Pod Name
  • Container ID
  • Container Name
  • Labels
  • Annotations
  • Cluster name
  • Instance Name

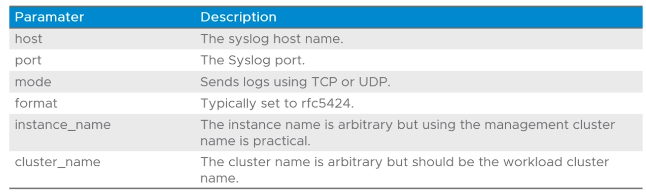

Fluentbit Syslog Output Configuration

  • When configuring output to syslog, the following parameters should be considered:

Untitled
