3.2 - Deploying Tanzu Kubernetes Cluster

Learner Objectives

  • Describe the options for deploying Tanzu Kubernetes clusters
  • Describe how Tanzu Kubernetes clusters are created

Tanzu CLI Cluster Plugin

  • The Tanzu CLI core executable must be installed as well as the CLI plugins associated with Tanzu Kubernetes cluster management and feature operations

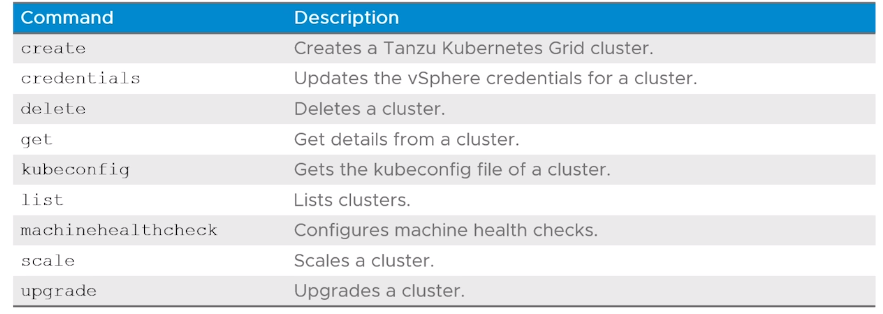

  • Once installed, the following commands are available to be appended to tanzu cluster

Untitled

Tanzu Cluster Create

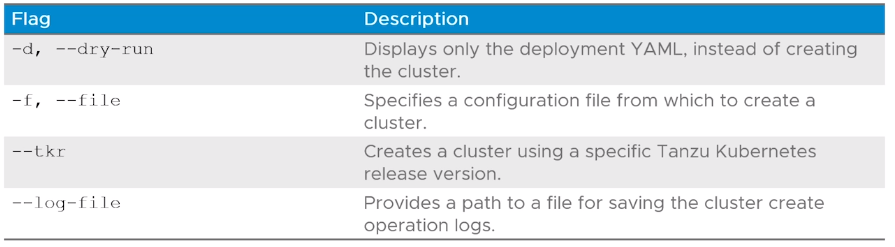

The following flags can be added to the tanzu cluster create command:

Untitled

Creating Tanzu Kubernetes Clusters

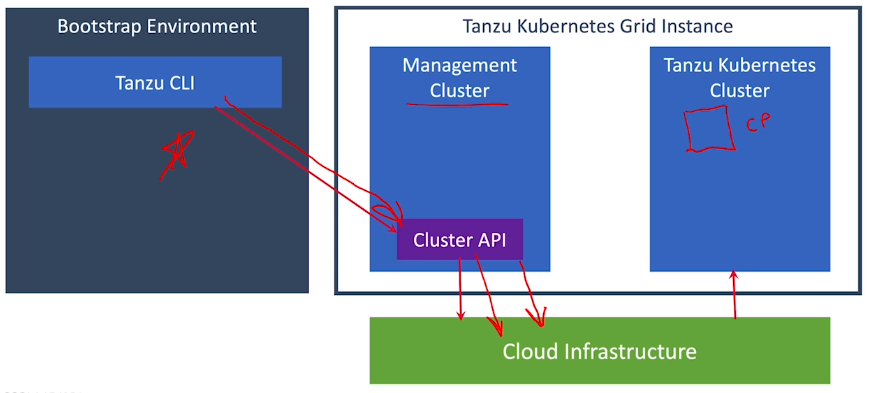

  • When running tanzu cluster create -f <file.yaml>, the Tanzu CLI communicates with the Cluster API in the management cluster, which then uses the Cloud Infrastructure provider e.g. vSphere CAPV to deploy the Tanzu Kubernetes Cluster(s) required.
  • This will use the configuration and deployment plans outlined e.g. deploy x control plane nodes, y Worker nodes.
  • Once deployed, the cluster API will continuously compare the configuration in the Tanzu Kubernetes Cluster to manage and facilitate various operations.

Untitled

Cluster Configuration Files

  • These files contain the configuration parameters passed to the Tanzu CLI, and combined with cluster plan template files to deploy Tanzu Kubernetes Cluster(s)

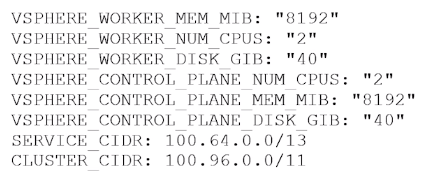

  • Example parameters include (for a vSphere deployment)

Untitled

Deploying Clusters with a High Availability Control Plane

  • The CLUSTER_PLAN parameter determines the number of control plane nodes:
  • dev sets 1 control plane node
  • prod deploys 3 control plane nodes and 3 worker nodes.

Previewing the YAML File for Tanzu Kubernetes Clusters

  • Deployments can be tested based on the YAML file by appending the --dry-run flag
  • This is especially useful if making changes in the providers file.

Overriding Default Configuration Parameters

  • The Tanzu CLI management-cluster and cluster commands will take any configuration parameters specified in the file pointed at by the -f or --file flags
  • These parameters can be overridden by defining them as environment variables before using the CLI command e.g. export <var≥"new value"

Deploying Clusters that Run a Specific Kubernetes Version

  • Each release of Tanzu Kubernetes Grid:
  • provides a default Kubernetes version
  • Supports a defined set of Kubernetes versions
  • Example command to deploy with a specific version: tanzu cluster create -f <cluster yaml> --tkr v1.19.9---vmware.2-tkg.1
