4.01 - Tanzu Kubernetes Grid Extensions

Module Context

  • Any standard Kubernetes installation will lack some of the functionalities required for production-level deployment.
  • This is typically achieved by usage of extensions - TKG extensions provide functionality such as:
  • Logging
  • Ingress
  • Service Discovery
  • Monitoring

Learner Objectives

  • Describe the TKG Extensions and their functionalities

About the TKG Extensions Bundle

  • TKG extensions bundle includes binaries for tools to help provide in-cluster and shared services to your TKG instance
  • VMware builds all the provided binaries and container images associated.

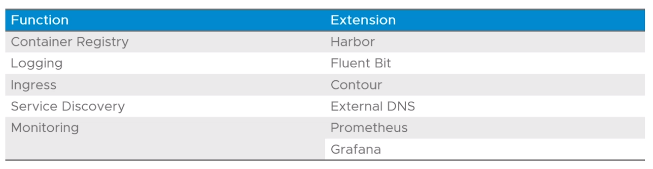

Extensions Overview

  • For each set of functionality, TKG extensions bundle typically has 1 preset extension readily available, though in the case of Monitoring, both Prometheus and Grafana are used in combination as standard practice.

Untitled

  • Note: Other options are available for each function e.g. NGINX, Traefik for Ingress

Container Images

  • VMware builds all container images used by Tanzu Kubernetes Grid and TKG extensions
  • All container images are hosted on projects.registry.vmware.com
  • An instance of the Harbor image registry that's managed by VMware
  • For internet-restricted environments, container images can be copied to an accessible image registry
  • The extension manifest must then be updated to include the specific image registry

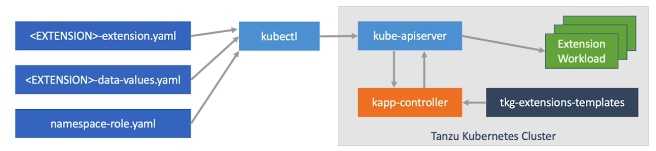

Deployment with kapp-controller

  • When extensions are deployed:
  • The namespace, configuration (-data-values.yaml), and extension (-extension.yaml) YAML files for the particular extension are applied.
  • kapp-controller combines the configuraiton with the YTT templates from the tkg-extensions-templates to generate all resource definitions required for the extension, such as:
    • Deployments
    • ConfigMaps
    • Secrets
  • The extension workload is then started using standard Kubernetes processes i.e. kubectl apply
  • Therefore, requests to deploy these extensions are passed from the kube-apiserver to the kapp-controller, which takes the templates from the tkg-extensions-templates and uses them to deploy the extensions.
  • The kapp CLI can be used to inspect the state of workloads that are deployed by the kapp-controller.

Untitled

Configuring Extensions with Kubernetes Secrets

  • Extensions are configured by creating a Kubernetes secret containing related configuration data
  • The configuration file for each extension is defined in a file of format <extension>-data-values.yaml - this is used to create a Kubernetes secret named <extension>-data-values
  • When kapp-controller deploys an extension, it reads the secret configuration to apply it to the extension
  • Changes to the secret resource will automatically be picked up by the kapp-controller once the secret's data is updated.

Cert-Manager

  • A native Kubernetes certificate management controller
  • Functionalities include:
  • Add certificates and certificate issuers as resource types in Kubernetes clusters
  • Simplifies the process of obtaining/renewing/using certificates
  • Allows generation of certificates internally and connection to external services (e.g. Lets Encrypt) to request certifcates
  • It's not considered a TKG extension outright, however it is included in the extensions bundle as Contour, Grafana, Prometheus and Harbor all depend on its functionality to work.

Deleting Extensions

  • For troubleshooting or deletion of extensions, simply use kubectl delete -f against the YAML files associated with the extension i.e.:
  • <extension>-extension.yaml
  • namespace-role.yaml
