5.1 - Tanzu Kubernetes Grid Logs

Context

  • Understanding how to identify and resolve issues is vital to efficient operation of TKG.

Objectives

  • Describe the logs of TKG
  • Identify the location of TKG logs

Monitoring Tanzu Kubernetes Cluster Deployments in Cluster API Logs

  • If a cluster deployment is failing, the reason can usually be deduced from the logs for the Cluster API pods via kubectl logs
  • During a management cluster deployment, these logs are accessible on the bootstrap cluster
  • For a workload cluster deployment, they are accessible on the management cluster

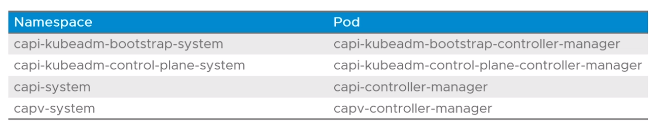

  • Pods whos logs should be noted and their associated namespaces follow:

Untitled

Viewing Cluster API Resources

  • Each cluster deployed via TKG has corresponding cluster API resources that can be viewed by the kubectl describe commands
  • Resources covered include:
    • clusters
    • kubeadmconfigs
    • machinedeployments
    • machinesets
    • machines
    • vsphereclusters
    • haproxyloadbalancerss
    • vspherevms

Kubernetes Audit Logging

  • Enabled by setting ENABLE_AUDIT_LOGGING=true in the configuration file when deploying a cluster
  • Logs metadata regarding all requests made to the Kubernetes API server
  • Audit events logged to /var/log/kubernetes/audit.log on each control plane node
  • Audit logs are by default included in the logs sent to the FluentBit logging server

System Audit Logging

  • Enabled by default on Tanzu Kubernetes clusters
  • Uses the auditd system to track audit events
  • Logs audit events to /var/log/audit/audit.log on each node
  • Included in the logs sent to the FluentBit logging server
