4.04 - Image Registry

About Harbor

  • A container image registry that supports:
  • RBAC
  • Identity Integration with LDAP and OIDC
  • Scanning images for vulnerabilities
  • Signed images
  • Image replication between registries.

Harbor Components

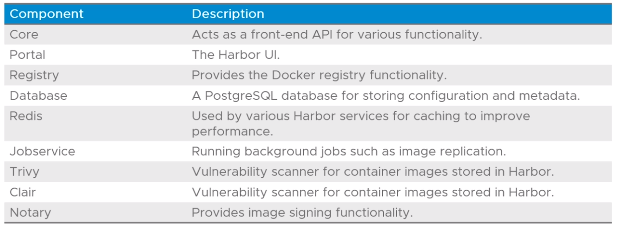

  • Components included in Harbor follow:

Untitled

  • Note: Scanning is available either via Trivy or Clair

Vulnerability Scanning

  • Trivy provides multiple vulnerability scanning functionality in Harbor:
  • Scans container images
  • Scans OS packages in container images e.g. Photon OS, Ubuntu, etc.
  • Scans language-specific packages in container images e.g. Python, GO, etc.
    • Clair lacks this functionality!
  • Configuration can be put in place to prevent image deployments depending on the level of vulnerabilities found.

Harbor Deployment Options

  • Harbor is deployed on a shared-services cluster - all workload clusters deployed in a TKG instance can therefore access it.

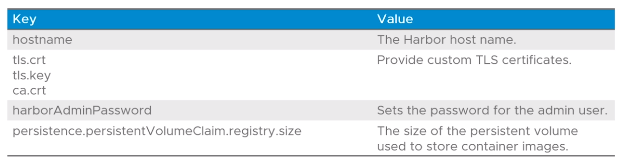

  • Common configuration options follow:

Untitled

Harbor Authentication

  • Configuration → Authentication
  • Allows configuration of LDAP and OIDC, amongst other methods, depending on requirements
