3.0 - Introduction to Security and architecture on AWS

AWS Architecture Core Concepts

Security and Architecture overview

  • All AWS users must remain in line with AWS's Acceptable Use Policy - determines acceptable / unacceptable usage.
  • Unacceptable usage includes:
  • Sending unsolicited mass emails
  • Hosting or distributing harmful content
  • Details penetration testing for specific services.

Least Privilege Access

  • When granting access to a service, grant only the minimum privileges required to complete the task
  • Also suggests not to use root accounts for daily account activities.

Shared Responsibility Model

  • When working in the cloud, security and compliance is a shared responsibility between AWS and the customer.
  • AWS Responsibility - Security of the cloud
  • Access and training for Amazon employees
  • Global data centre and underlying data network maintenance
  • Hardware for global infrastructure maintenance
  • Configuration management for infrastructure
  • Patching cloud infrastructure and services
  • Customer Responsibility - Security for what they do in the cloud
  • Individual access to cloud resources and training
  • Data security and encryption (in transit and at rest)
  • Operating system, network and firewall configuration (if using IaaS)
  • Code deployed onto cloud infrastructure.
  • Patching guest OS and custom applications

AWS Well-Architected Framework

  • A collection of best practices across 5 key areas to create systems that add business value on AWS
  • Key Pillars:
  • Operational Excellence - Running and monitoring systems for business value
  • Security - Running and monitoring systems for business value
  • Reliability - Enabling infrastructure to recover from disruptions
  • Performance efficiency - Efficient resource usage
  • Cost optimizations - Minimize costs for desired value
  • Available at https://aws.amazon.com/architecture/well-architected

High-Availability and Fault Tolerance

  • Under the reliability pillar of the well-architected framework.
  • 2 main categories of reliability:
  • Fault-Tolerance - Being able to support the failure of components within architecture
  • High-Availability - Keeping entire solution running as expected in the event of disruption
  • Building solutions on AWS, consider:
  • Most managed AWS services offer high availability out of the box
  • When building solutions on EC2, fault tolerance needs to be architected.
  • Multiple availability zones should be leveraged
  • Some services can enable fault tolerance in custom applications e.g.:
    • Simple Queue Service (SQS)
    • Route 53

Compliance

  • Standards to note include:
  • PCI-DSS: For processing credit cards
  • HIPAA - Healthcare data
  • SOC 1-3 - Third-party reviews of operational processes
  • FedRAMP - US Government Data handling
  • ISO - Personal Identifier Info
  • Services to maintain compliance include:
  • AWS Config - Provides conformance packs for standards
  • AWS Artifact - Provides self-service access to reports
  • Amazon GuardDuty - Provides intelligent threat detection
  • AWS Config → Conformance Packs → Deploy Conformance Pack
  • Use template as appropriate - many standards have templates pre-done
  • AWS Artifact → Find desired compliance standard for review.
  • May need to sign NDA with AWS to allow access

Scenarios

Scenario 1

  • Application processing credit cards
  • Processing done directly not through a service
  • PCI DSS compliance report needed for AWS
  • Where to get this info? AWS Artifact to get the reports.

Scenario 2

  • Personal information stored in their system
  • What's the responsibility for security
  • What's their responsibility? Review the Shared responsibility model - Shared with AWS - the company is responsible for the security and compliance of anything they do on AWS with services and resources.

Scenario 3

  • New tool for digital asset management
  • How best to leverage the capabilities? Review the well-architected framework

AWS Identities and User Management

Introduction to AWS IAM

  • Identity and Access Management (IAM)
  • Controls access to AWS resources
  • Free to use service
  • Covers both authentication and authorization
  • Supports identity federation through SAML providers including Active Directory
  • IAM Identity Types:
  • Users - Account for single individual to access resources
  • Groups - Allows you to manage permissions for a group of IAM users
  • Roles - Enables a user or AWS service to assume permissions for a task

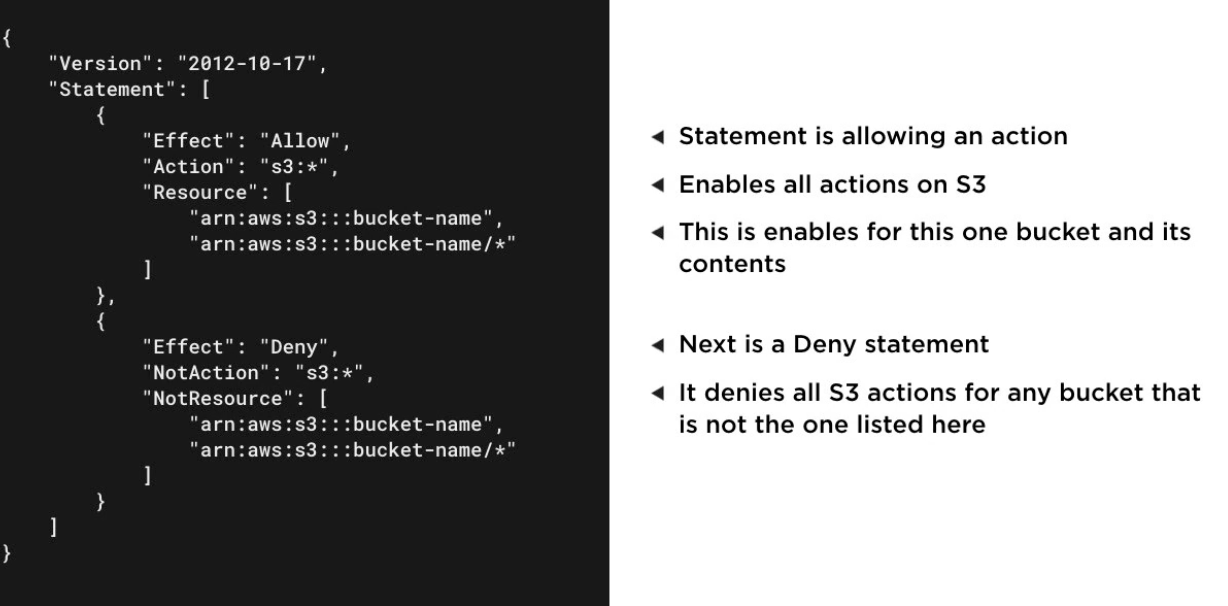

  • Policies in AWS IAM
  • JSON document that defines permissions for an AWS IAM Identity
  • Defines both AWS services that the identity can access and what actions can be done on that service
  • Can be customer-managed or managed by AWS.

Untitled

  • Best practices:
  • Set up multi-factor authentication → provides additional security
  • Least privilege access → only grant the minimal permissions required for their current tasks

Creating and Managing IAM Users

  • AWS Console → IAM → Users → Add User
  • Provide relevant details:
  • Name
  • Access type (programmatic or management console access)
  • Console password
  • Permissions
  • Template policies (AWS-managed) exist for many individual resource types
  • Tags
  • Groups → Create group
  • Provide details:
    • Group name
    • Policies
  • Create group
  • Users → User → Groups Tab → Add user to group

Enabling Multi-Factor Authentication

  • MFA for root user can only be managed for root user
  • Account → IAM → Security → Enable MFA → Virtual MFA (Recommended) and setup accordingly
  • Repeat for any IAM users.

Amazon Cognito

  • A managed service that facilitates user directory service for custom applications.
  • Like IAM but for custom applications
  • Provides UI components for many platforms
  • Provides security capabilities to control account access
  • Enables controlled access to AWS resources
  • Leverages external providers such as:
  • Google
  • Amazon
  • Facebook
  • MS Active Directory
  • SAML 2.0

IAM Scenarios

IAM Scenario 1

  • Team needing access (same level to cloud systems)
  • Wants to do it quicker than managing each individual user
  • What approach? Utilise group permissions

IAM Scenario 2

  • EC2 Servers need access to data within S3 Buckets
  • Created a user in IAM for servers and uploaded keys to the server.
  • Is this best practice? If not what should be done?
  • Use an IAM Role within EC2 - Mitigates a lot of security risks → Gives the services the permissions required.

IAM Scenario 3

  • Transitioning to cloud
  • Concerns about securing access to AWS resources with a password
  • Wanting additional security, how?
  • Use Multi Factor Authentication

Data Architecture on AWS

Integrating On-Premise Data

  • Solutions available:
  • AWS Storage Gateway - A Hybrid Cloud Storage Service
  • AWS DataSync - Automated data transfer service
  • Storage Gateway
  • Integrates cloud storage to local network
  • Deployed as a VM or a specific hardware appliance
  • Integrates with S3 and EBS
  • Supports 3 gateway types:
    • Tape Gateway - Enables tape backup processes to store data in the cloud on virtual tapes
    • Volume Gateway - Provides cloud-based iSCSI volumes to local applications
    • File Gateway - Stores files in Amazon S3 whilst providing cached low-latency local access
  • DataSync:
  • Agent deployed as a VM on your network
  • Integrates with S3, EFS and FSX for Windows File Server on AWS
  • Offers greatly improved transfer speed via custom protocols
  • Charged per GB Transferred

Processing Data

  • Services:
  • AWS Glue - Managed Extract, Transform and Load Service (ETL)
  • Amazon EMR - Big Data cloud processing using popular tools
  • AWS Data Pipeline - Data workflow orchestration service across AWS services

AWS Glue

  • Fully managed ETL service on aws
  • Supports data in Amazon RDS, DynamoDB, Redshift and S3
  • Supports serverless model of execution

Amazon EMR

  • Enables big data processing on Amazon EC2 and S3
  • Supports popular open source frameworks and tools
  • Operates in a clustered environment without additional configuration
  • Supports many different big data use cases
  • Supported EMR Framewkorks:
  • Apache:
    • Spark
    • Hive
    • HBase
    • Flink
    • Hudi
  • Presto

AWS Data Pipeline

  • Managed ETL service on AWS
  • Manages data workflow through AWS services
  • Supports S3, EMR, Redshift, DynamoDB and RDS

Analysing Data

  • Services:
  • Amazon Athena - Service that enables querying of data stored in Amazon S3
  • Amazon Quicksight - Business intelligence service enabling data dashboards
  • Amazon CloudSearch - Managed search service for custom applications

Athena

  • Fully managed serverless service
  • Enables querying of large-scale data stored within Amazon S3
  • Queries written using standard SQL
  • Charges based on data scanned per query (amount, time taken, etc)

Quicksight

  • Fully managed business intelligence service
  • Enables dynamic data dashboard based on data stored in AWS
  • Charged on per user and per-session pricing model
  • Multiple versions provided based on needs

CloudSearch

  • Fully managed search service on AWSSupports scaling of search infrastructure to meet demand
  • Charged per hour and instance type of search infrastructure
  • Enables developers to integrate search into custom applications.

Integrating AI and Machine Learning

  • Many services available - only focusing on the following:
  • Amazon Rekognition - Computer vision service powered by machine Learning
  • Amazon Translate - Text translation service powered by machine learning
  • Amazon Transcribe - Speech to Text solution using machine learning

Rekognition

  • Fully managed image and video recognition deep learning service
  • Identifies objects in image
  • Identifies objects and actions in videos
  • Can detect people using facial analysis
  • Supports custom labels for business objects

Translate

  • Fully managed service for translation of text
  • 54 (at least) languages supported
  • Can perform language identification
  • Can work in batch and real-time

Transcribe

  • Speech to text translation - fully managed
  • Recorded speech converted into text in custom applications
  • Includes specific sub service for medical use
  • Supports 31 different languages and works in batch and real-time.

Data Architecture Scenarios

Data Architecture Scenario 1

  • Financial company
  • Large scale data set needs to be processed
  • Not wanting to manage servers, just the processing
  • Recommended Service: AWS Glue

Data Architecture Scenario 2

  • Biotech company
  • Wanting to identify an approach for controlled lab access
  • Wanting to use AI to determine access level via facial recognition
  • Recommended Service: AWS Rekognition

Data Architecture Scenario 3

  • Custom services around machine learning
  • Wanting visualisation of sales data
  • Data currently stored in Redshift
  • Recommended Service: AWS Quicksight - better for non-technical use case

Disaster Recovery on AWS

  • Disaster Recovery = Any critical situation that has a negative impact on a business continuity or finances.
  • Examples include hardware/software failure, network outage, data centre destruction, human error, etc.

Disaster Recovery Architecture

  • Architectures vary in cost, complexity, and time to restore:
  • Backup and Restore
    • All production data backed up into Amazon S3
    • Data can be stored in either standard or archival storage classes
    • EBS data can be stored as snapshots in S3
    • In the event of DR - a process is started to launch a new environment
    • Longest recovery time out of the 4 methods, but the cheapest.
  • Pilot Light
    • Key infrastructure components are kept running in the cloud
    • Designed to reduce recovery time compared to backup and restore - core pieces of system are kept up to date
    • Incurs cost of infrastructure conitnually running in the cloud
    • AMIs are prepared for additional systems to be launched quickly
  • Warm Standby
    • Scaled down version of the full environment running in the cloud
    • Critical systems can be running on less capable instance types
    • Instance types and other systems can be ramped up for disaster recovery event
    • Cost incurred for continuous running of infrastructure
  • Multi Site
    • Full environment running in the cloud at all times e.g. 1 in us-west 1 and us-west 2
    • Uses instance types needed for production and recovery
    • Provides near seamless recovery process
    • Incurs most cost over the other approaches

Selecting a Disaster Recovery Architecture

  • Need to consider:
  • Recovery Time Objective (RTO) - How long for the system to get back up and running to ideal business state
  • Recovery Point Objective (RPO) - How much data loss (in terms of time) occurs during a DR scenario.
  • Generally RTO and RPO decrease with increased cost
  • Pilot Light and Warm standby can have variable RTO and RPOs depending on the resources and services leveraged.

Disaster Recovery Scenarios

Disaster Recovery Scenario 1

  • Several production workloads
  • Disaster recovery approach needed
  • Seamless transition needed
  • Recommended approach: Multi Site

Disaster Recovery Scenario 2

  • Startup
  • No DR in place
  • Minimizing costs more important than RTO
  • Recommended approach: Backup and Restore

Disaster Recovery Scenario 3

  • Disaster Recovery Approach
  • Few key servers up and running in the event of an event
  • Servers have smaller instance types than production
  • Recommended approach: Pilot light

Architecting Applications on Amazon EC2

Scaling EC2 Infrastructure

  • Scaling methods available:
  • Vertical scaling → make servers bigger and use more resources
  • Horizontal scaling → scaling out and adding more servers of the same type
  • Services linked to EC2 to facilitate this:
  • Auto Scaling Group
    • Set of EC2 Instances with rules for scaling management
    • Launch template defining the instance configuration for the group
    • Defines the minimum, maximum and desired number of instances
    • Health Checks performed on each instance
    • Exists within 1 or more availability zones in a single region
    • Works with on-demand and spot instances
  • Elastic Load Balancer
  • AWS Secrets Manager
  • Secure way to integrate credentials, API keys, tokens and other secret content.
  • Integrates natively with RDS, DocumentDB, and Redshift
  • Can auto-rotate credentials with integrated services
  • Enables fine-grained access control to secrets

Controlling Access to EC2 Instances

  • Security in Amazon VPC
  • Security groups - enables firewall-like controls for resources within VPCs
  • Network ACLs - controls inbound and outbound traffic with subnets for VPCs
  • AWS VPN - Secure access to an entire VPC using an encrypted tunnel

Security Groups

  • Serve as firewall for your EC2 instances
  • Control inbound and outbound traffic
  • Works at the instance level
  • EC2 Instances can belong to multiple security groups
  • VPCs have default security groups
  • All outbound traffic allowed by default

Network ACLs

  • Works at a subnet level with a VPC
  • Enables you to allow and deny traffic
  • Each VPC has a default ACL that allows all inbound and outbound traffic
  • Custom ACLs deny all traffic by default

AWS VPN

  • Creates an encrypted tunnel into your VPC
  • Can be used to connect data centre or even individual client machines
  • Supported via:
  • site to site VPN - e.g. AWS and on-prem data centre interaction
  • Client VPN

Protecting Infrastructure from Attacks

  • Recommended services:
  • AWS Shield - Managed DDoS protection service
  • Amazon Macie
  • Amazon Inspector
  • DDoS = Distributed Denial of Service
  • An attack where a server or group of servers are flooded with more traffic than they can handle in a coordinated effort to bring the system down.

AWS Shield

  • Provides protection against DDoS attacks for apps on AWS
  • Enables ongoing threat detection and mitigation
  • 2 Different service levels:
  • Standard
  • Advanced

Amazon Macie

  • Utilizes machine learning to analyze data stored in S3
  • Can detect personal information and intellectual property in S3
  • Provides dashboards that show how the data is being stored and accessed
  • Enables alerts if it detects anything unusual about data access

Amazon Inspector

  • Enables scanning of EC2 instances for security vulnerabilities
  • Charged by instance per assessment run
  • Rule packages:
  • Network reachability assessment
  • Host assessment - tests for host configuration vulnerabilities

Deploying Predefined Solutions

  • Multiple solutions available:
  • Service Catalog - Managed catalog of IT services for an organization
  • AWS Marketplace - Catalog of software to run on AWS via 3rd parties
  • Service catalog
  • Targeted to serve as an organisational service catalog for the cloud
  • Includes anything from single server image to multi-tier custom applications
  • Enables organisations to leverage services that meet compliance
  • Supports a lifecycle for services released in the catalog
  • AWS Marketplace
  • Curated catalog of third party solutions for customers to run on AWS
  • Provides anything from AMIs, CloudFormation Stacks and SaaS based solutions
  • Enables different pricing options to overcome licensing in the cloud
  • Charges noted in bill

Developer Tools

  • AWS CodeCommit - Basically GitHub
  • Managed source control service
  • Uses git for repositories
  • Control access via IAM policies
  • Serves as an alternative to Github and Bitbucket
  • AWS CodeBuild - CI
  • Fully managed build and continuous integration service
  • No need to maintain infrastructure
  • Charged per minute used for build operations
  • AWS CodeDeploy - CD
  • Managed deployment service for deploying custom applications
  • Deploys to amazon EC2, Fargate, Lambda and On-Prem servers
  • Provides a dashboard for deployments in the AWS console
  • AWS CodePipeline → Full pipeline scenario
  • Fully managed continuous delivery service
  • Automates build, test and deployment via previous services
  • Integrates with github
  • AWS CodeStar → Bootstrap pipeline for application
  • Workflow tool to automate the use of other developer services
  • Creates a complete continuous delivery toolchain for a custom application
  • Provides custom dashboards and configurations in the AWS console
  • Only charged for the other services leveraged

Application Architecture Scenarios

Application Architecture Scenario 1

  • Financial service recently transitioned to AWS
  • Want to create compliant IT services that other depts can use
  • Recommended: Service Catalog

Application Architecture Scenario 2

  • Leverages AWS for multiple production workloads
  • Recently experienced downtime due to a app failing on EC2
  • Wanting to minimise downtime
  • Recommended: Scale out / use an auto scaling group and load balancer

Application Architecture Scenario 3

  • Company deals with sensitive information
  • Put policies for data stored in S3
  • Concerns about the policies being changed accidentally and breaches going unoticed
  • Recommended: Amazon Macie → classifies data and monitors only the recommended data.

Exam Prep

  • Multiple choice or multiple answer questions
  • Score 100-1000
  • Passing score = 700
  • Areas of focus:
  • Fundamental cloud concepts - 26%
  • Technology - 33% (AWS Global infrastructure, services, etc.)
  • Security and Compliance - 25% (shared responsibility, compliance reports etc)
  • Billing and Pricing - 15% (TCO Calculator, etc and the value provided)

Registering

  • Cloud practitioner cert page → portal
  • Create account if required (if have a partner account, sign in accordingly)
  • Select the exam required
  • Cloud Concepts:
  • How do cloud platforms differ from traditional data centres
  • How does AWS organise its infrastructure globally
  • CapEx vs OpEx
  • How does scalability differ in the cloud from normal data centres
  • Security:
  • Shared responsibility model
  • Review highlighted best practices for AWS account and resources
  • Securing traffic within VPC
  • Least Privilege
  • IAM and Identity Types
  • Billing and Pricing
  • Tools to understand AWS costs
  • Understand cost effective ways for core services
  • Cost vs data centres
  • How can organisations manage and review costs
  • Support plan levels available
  • Technology
  • Each of the services in the services lists (Critical)
  • Implement basic solutions
  • Review architectural principles for fault tolerance and HA
  • Analyze scalability approaches
  • Think about the intent of each question
  • What's required for the answer? MCQ, MAQ?
  • Can always come back to questions if required.
  • Guess if don't know - better than nothing

Important Next Steps
